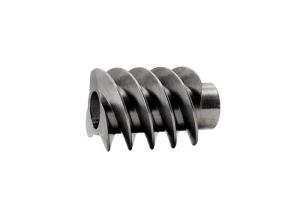

OEM ODM M0.8 C1144 Steel Worm Gear 4 Lead For Gearbox AGMA / 7

Name: OEM ODM M08 C1144 Steel Worm Gear 4 Lead For Gearbox AGMA 7
Brand: Nierson
Price: 1 USD

Brand Name : Nierson

Model Number : N11005006

Certification : RoHS

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5,000pcs/month

Delivery Time : 40-45 work days

Packaging Details : Vacuum + tray + carton

Material : C1144

Number of teeth : 4

Name : Right Hand Worm Gear

Helix angle : 14.5°(right hand)

OEM : YES

Quality class : 7 / AGMA 2000-A88

Contact Now

Nierson can manufacture worms Max. diameter up to 120mm with all types of materials steel alloys,including S45, 1144, 42CrMo, 20CrMnTi, 8620, 4140 etc. for all types of applications. Holding up to an DIN3974 class 5

3 lead M1.5 C1144 worm gear for right angle gearbox AGMA / 7

Number of teeth	4
Module	0.8
Helix angle	14.5º
Quality Class( AGMA 2000-A88)	7
Outside diameter	16.8mm
Root diameter	11.5mm
Material	C1144 1) Metal:Stainless steel,Steel(Iron,)Brass,Copper,Aluminum 2) Plastic:POM,Nylon,ABS,PP 3) OEM according to your request

1, Machining ability

DIN 3974 Quality Class: Class 5
Worm Lead No.: 1-6
Max. Module: 4.0
Max.Length: 120mm
Max Diameter:500mm
Roughness: Ra 0.4
Material: Various Steel Alloys, S45, C1144, 42CrMo, 20CrMnTi, 8620, 4140, C12l14
Heat treatment: Carbo-Nitride HRC50-58, induction HRC 50-60, quanch & temper HRC 50-60

2, Quality system

IATF:2016 Certificates
RoHS
PPAP

3, Inspection equipment

Klingelnberg P26 gear checker
Gear roll testing machines
Worm Helix Tester
Universal Tool Microscope
Taylor Surface Roughness Tester
Mahr Digital Indicator
Roundness Tester
Air Gauge
TV Microscope
Rockwell Hardness tester

4, Production equipment and capability

Production equipments are over 200pcs, including Turning, milling, hobbing, shaping, broaching, honing, grinding, sawing, cutter sharpening, thread etc.
Capability is over 30 million per year

5 Packages

Vacuum + tray + Carton
